Stainless Steel Wire Mesh
Stainless steel dutch woven wire mesh: stainless steel dutch woven wire mesh is sintered by a kind of two or more layers of plain weave, it is crossed and stacked together though sintering, pressing, rolling and other process. It has a uniform mesh,breathable performance stable. it is mainly used in the fluidized bed, powder conveying, silencer, drying, cooling and other fields.
We produce stainless steel wire mesh from first class stainless steel wire material in SUS/AISI 201 202 302 304 310 310S 316 316L 321 430 etc.Stainless steel wire mesh with its excellent resistance against acid, alkali, heat and corrosion, find extensively uses in processing of oil, chemical, food, making wire mesh filter, also sorting and screening of solid, liquid and gas in mine, metallurgy, airspace and machine making etc.
Characteristics:
1)High mechanical strength and compressive strength.
2)High dirt holding capacity
3)Extremely high porosity rating
4)Excellent back-washing ability
5)Good Corrosion resistance
6)Good heat resistance
7)Easy machining
8)Difficult deformation
About Micron Stainless Steel Wire Mesh:
Woven Stainless Steel Wire mesh is a surface-type filter media.
It is made by weaving specific wire in predetermined patterns to form apertures of different shapes and sizes.
Another type of ss wire mesh is Muti-layers sintered metal mesh. It is sintered by two or more layers(2~12 layers) of stainless steel wire mesh, which are compressed and sintered together in vacuum.
Its micron rating ranges from 0.5 micron to 300 micron.

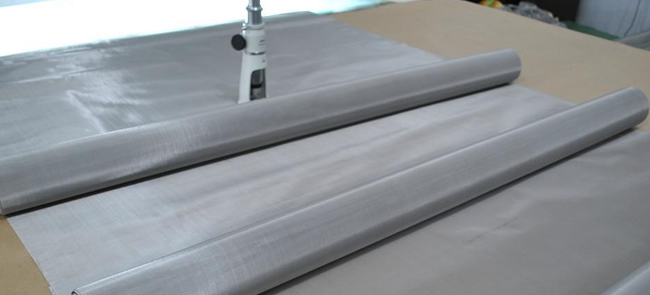

200 micron stainless steel wire mesh

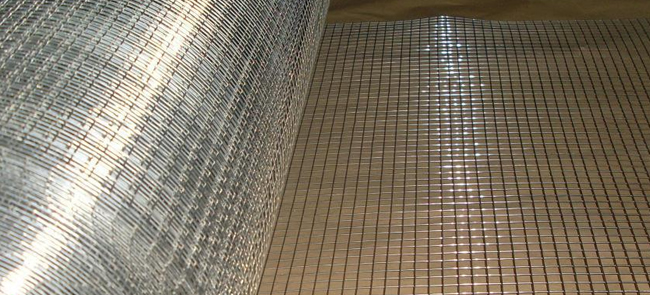

Stainless steel welded wire mesh
| type | Nominal Filter rating (um) |
Absolute rating 98%( um) |
Mean B.P.P (pa) |
Resistance Coeffient 105 |
Porosity (%) |
Weight (kg/m2) |
Thickness (mm) |
Tensile strength (kgf/mm2) |
| 5KW5 | 2 | 8~9 | 5000~ 6000 |
14 | 30~38 | 8.4~9.1 | 1.6~1.7 | 11~13 |
| 10KW5 | 5 | 12~14 | 3300~ 3700 |
12 | ||||
| 15KW5 | 10 | 16~18 | 2800~ 3000 |
7 | ||||
| 20KW5 | 20 | 28~32 | 1800~ 1900 |
4 | ||||
| 30KW5 | 25 | 35~45 | 1300~ 1500 |
4 | ||||
| 50KW5 | 40 | 58~63 | 1000~ 1300 |
4 | ||||
| 75KW5 | 75 | 700~ 900 |
2 | |||||
| 100KW5 | 100 | 500~ 700 |
2 |
